| Resolution (H × V) | Full HD, 1920 × 1080 pixels |
| Camera Lens | CS mount; fixed focal length; suitable for day/night time operation |
| Number of traffic lanes | 2 |
| OCR | Server-based; Rear plates |
Automated Speed Enforcement Redefined- Smarter, More Cost Efficient Speed Cameras
Enforcer Municipal Speed Cameras- Only from Traffic Logix
Guardian Enforcer Plus Cameras
The Enforcer Plus camera offers hardware you own with no lease or contract required. And it gives you access to full ticket revenues with no profit-sharing. It’s a smarter speed camera model, and it’s here to protect your city’s roads.
You don’t need ongoing leases and contracts to use speed cameras on your own streets. And you don’t need to share ticket profits. With Enforcer Plus, the safety of your streets is back in your hands.
Sample Image Capture
The Guardian Enforcer Plus captures images of speeding drivers in multiple lanes simultaneously.
Precise OCR license plate recognition captures images of speed violators and conveys them in real-time to Logix on Cloud.
Choose to process tickets on your own or pay a small fee for us to process and mail your tickets. Either way, all ticket revenues for every speed infraction are yours. And since we’re focused on safety instead of revenue, we help you maximize your speed cameras impact, keeping them cash-flow positive without losing focus of their primary goal of enhancing safety and protecting your roads. It’s a new way of looking at speed cameras, and its saving cities hundreds of thousands of dollars.

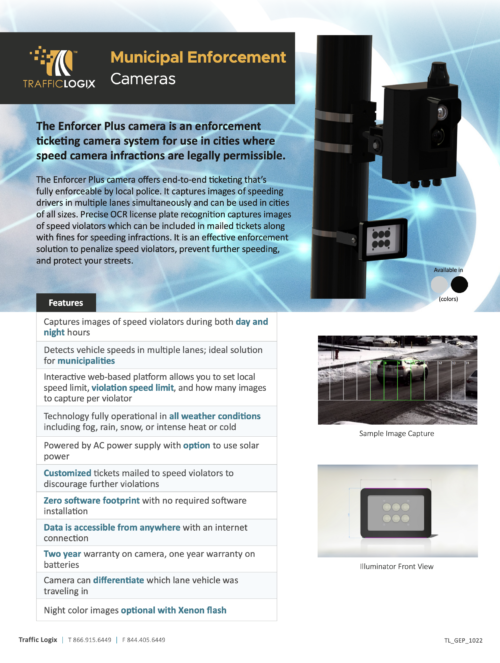

Download the product sheet
Features:
• For use in both day and night
• Ideal for municipal roads, legally enforceable ticketing.
• Set local speed limit, violation
speed limit, and how many images to capture per violator
• Operational in all weather conditions
• Powered by AC power supply
• Optional solar power available
• Zero software footprint
• Data accessible from anywhere
• Choice of self processing or full end-to-end processing
• 2 year warranty on camera, 1 year warranty on batteries
• Ideal for municipal roads, legally enforceable ticketing.
• Set local speed limit, violation
speed limit, and how many images to capture per violator
• Operational in all weather conditions
• Powered by AC power supply
• Optional solar power available
• Zero software footprint
• Data accessible from anywhere
• Choice of self processing or full end-to-end processing
• 2 year warranty on camera, 1 year warranty on batteries
Specs
Camera/Imaging
Processor/Storage/OS
| CPU | Raspberry Pi compute module ARM Cortex-A72 1.5 GHZ Quad core processor |
| Memory | 4 GB of RAM |
| Storage | 16 GB of storage |
| Buffer | approximately 1200 tickets |
| Operating System | Custom-built Linux |
Illuminator
| Internal/External | External |
| Wavelength | 850nm |
| Input voltage | 12 V AC |
Electrical Specifications
| Power supply voltage | 12 V DC |
| Instant Current | 0.51 Amps |
| Power consumption | 6.01 Watts |
Mechanical Specifications
| Operating temperature | -40° C to 85° C |
| IP rating | IP65 |
| Camera Housing | Aluminum, light gray or black |
| Dimension of camera | 8.25” (H) × 6.25” (W) × 2.75” (D) |
| AC power box option | Weight of AC Power Box: 5.9 lbs
Dimension of AC Power Box: 11.5” (H) × 8.1” (W) × 5.2” (D) Bracket Weight: 1.4 lbs |
| Battery box option | Weight of Battery Box: 20 lbs ( excluding batteries)
Dimension of Battery Box: 20.5” (H) × 16.2” (W) × 11.6” (D) Bracket Weight: 2.5 lbs Weight of Battery: 17.6 lbs Dimension of Battery: 9.01” (H) × 5.43” (W) × 8.38” (D) |
| Solar panel options
(100W / 190W) |
Weight of 100 W Solar Panel: 19.6 lbs
Dimension of 100 W Solar Panel: 40” (H) × 26.3” (W) × 1.4” (D) Bracket Weight: 5 lbs Weight of 190 W Solar Panel: 28.7 lbs Dimension of 190 W Solar Panel: 58.3” (H) × 26.3” (W) × 1.4” (D) Bracket Weight: 9.5 lbs |
Communication
| WiFi | Wi-Fi 802.11 b/g/n |
| GSM | 3G/4G (2G compatible) |
| SIM card size | Standard |
| Ethernet | Standard wired Ethernet 100 BASE-TX |
Guardian Enforcer Plus FAQs
Yes; research has shown that speed cameras encourage slower driving, reduce crashes, and decrease traffic fatalities.
Drivers who speed and receive tickets by mail generally cease speeding to avoid getting future tickets.
The Guardian Enforcement Plus offers the option to process tickets on your own or to use our end-to-end ticketing system, which takes care of the ticketing and mailing process for you for a small fee. There is no profit-sharing as with other systems and full ticket revenues go to your city to help you better protect your city’s roads.
The cameras use precise OCR license plate recognition so that images are clear and accurate.
The Enforcer Plus camera can capture images of speeding vehicles from multiple lanes simultaneously.
