First Digit: 12”(h) x 1.125”(w), 56 LEDs (3 digit signs only)
Other Digits: 12”(h) x 6.4”(w), 196 LEDs per digit

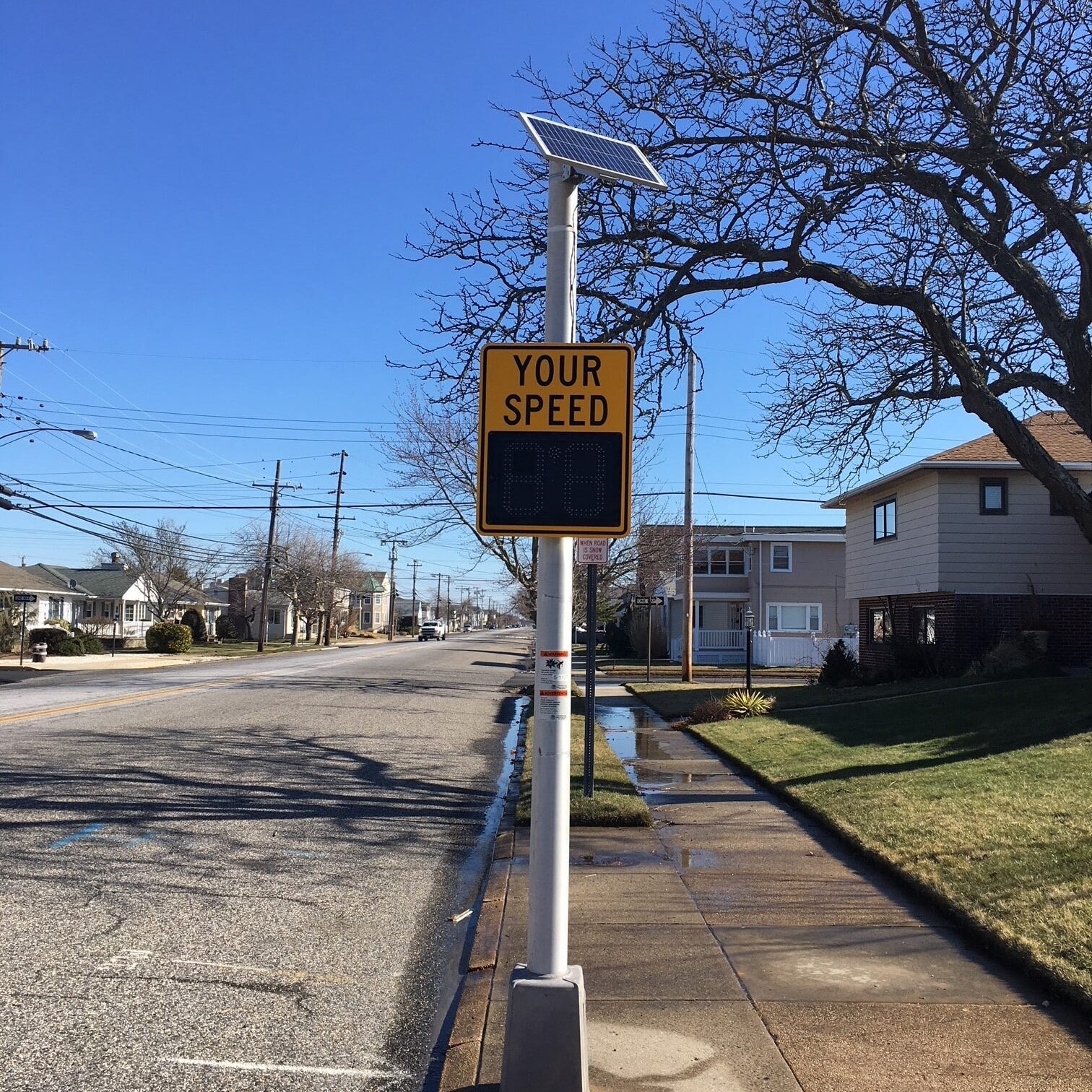

|Unit with “YOUR SPEED” sign mounted||Full size sign:29.0”(h) x 23.0”(w) x 5.625”(d)|
|AC power input||100~240 V AC|
|DC power input||12 V DC|

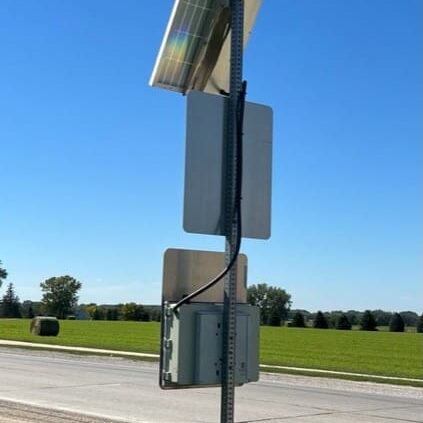

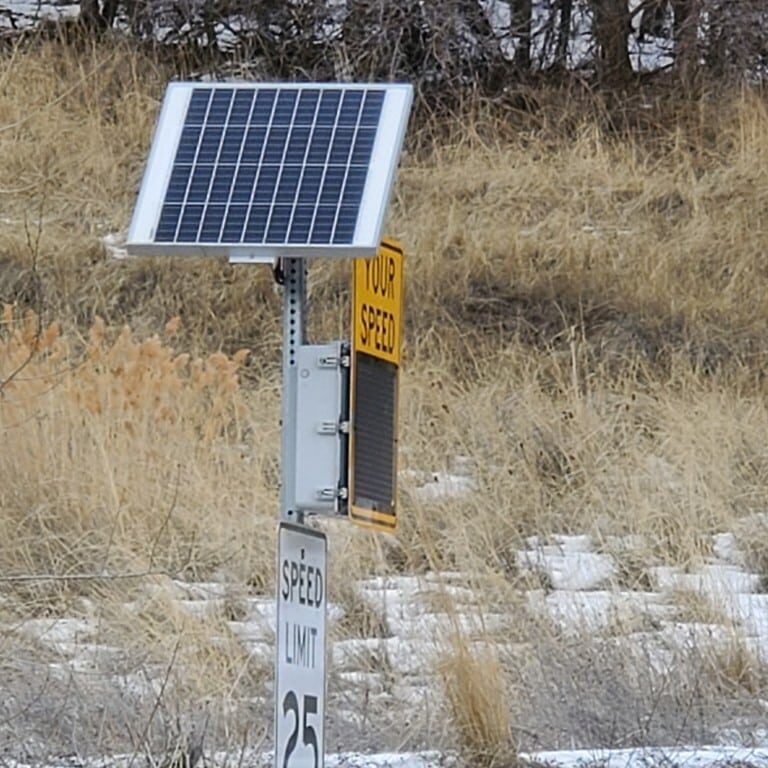

|Solar panel options||50W|
|Digits (Yellow)||224 Yellow (590 nm), 30°, 9000 – 22400 Ev,[lux]/LED|
|Digits (Red)||224 Red (633 nm), 30°, 7100 – 18000 Ev,[lux]/LED|
|Speed Violator Strobe||12 White (2700 K – 6500 K), 150°, luminous flux 33lm @ 4000 K|
|Ambient light sensors||1 sensor and automatic brightness control|
While both the 12” and 11” signs offer compact, lightweight speed display, only the 12” sign has digits large enough to meet MUTCD regulations. It also offers multiple digit color options while the 11” signs only offer yellow LEDs.
The smaller size of the Evolution 12 as compared to our full size signs offers a smaller footprint and lower cost. However, the smaller digits can’t be seen from as far away, making it a better choice for low volume roads with lower speed limits.
Our traffic safety support team is trained and available to help you figure out which speed display sign is the best fit to address your streets’ unique challenges.
All Evolution signs are web enabled and come with one year free access to the cloud. You can view detailed speed data from before and after you use your speed sign to track the difference it’s making in driver behavior.
SafePace Evolution signs offer stealth mode, where your signs appear to be off but are actually collecting traffic data. This helps you create a base of data to compare to. We also offer Speed Tracker for even more discreet speed collection data.
