Digits |
First Digit: 12”(h) x 1.125”(w), 56 LEDs (3 digit signs only) Other Digits: 12”(h) x 6.4”(w), 196 LEDs per digit |

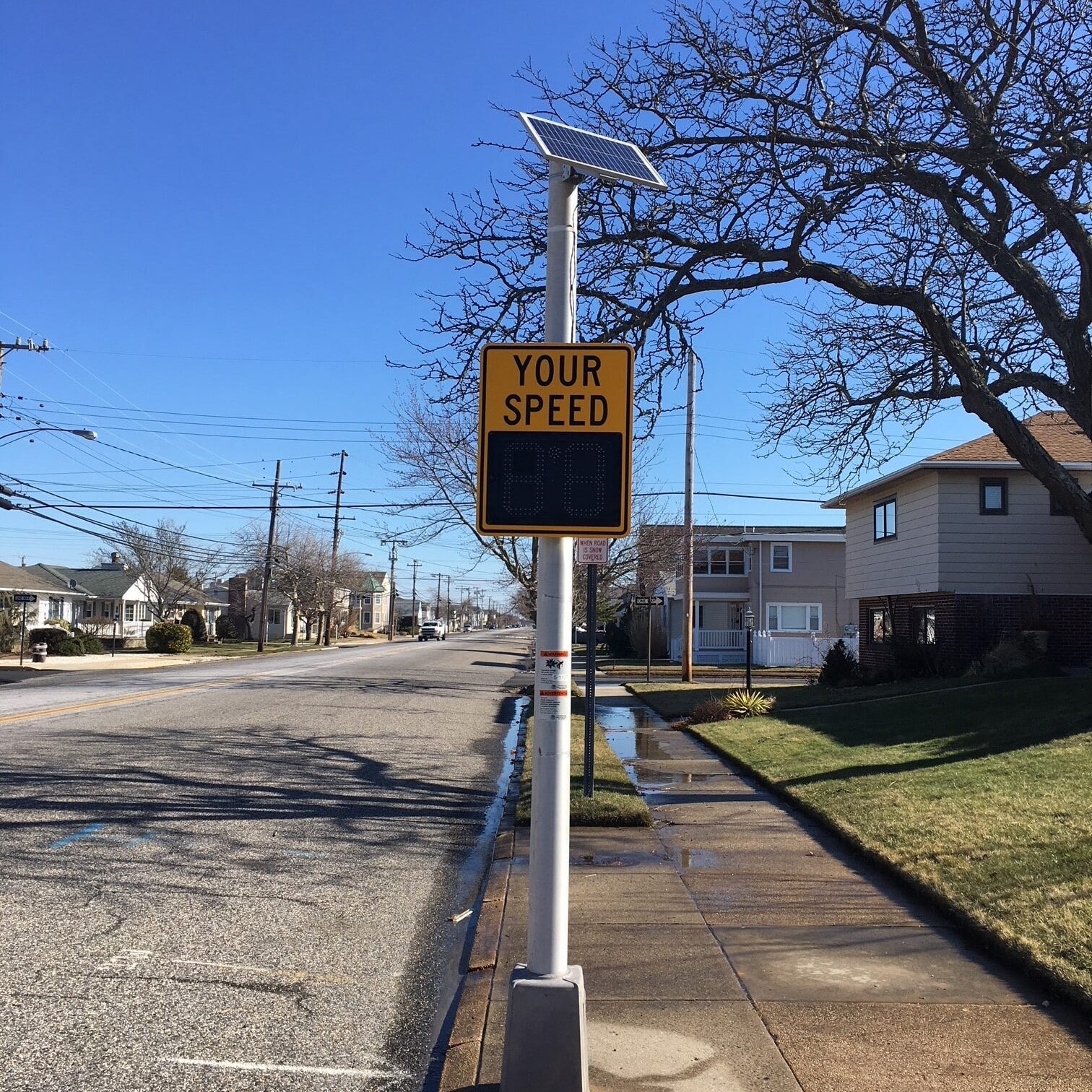

Unit with “YOUR SPEED” sign mounted | Full size sign:29.0”(h) x 23.0”(w) x 5.625”(d) |
12`` RADAR SIGNS
SAFEPACE EVOLUTION 12

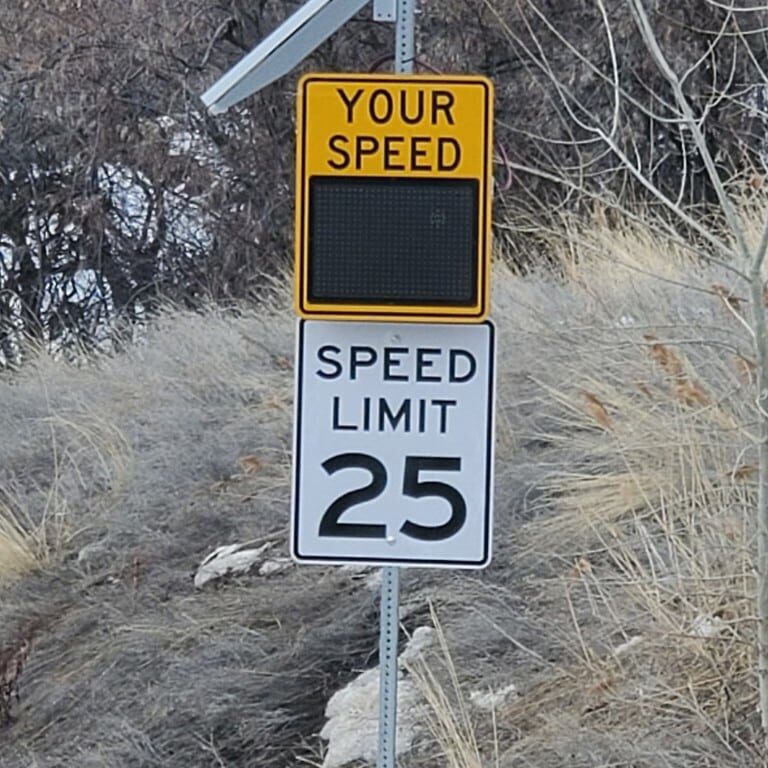

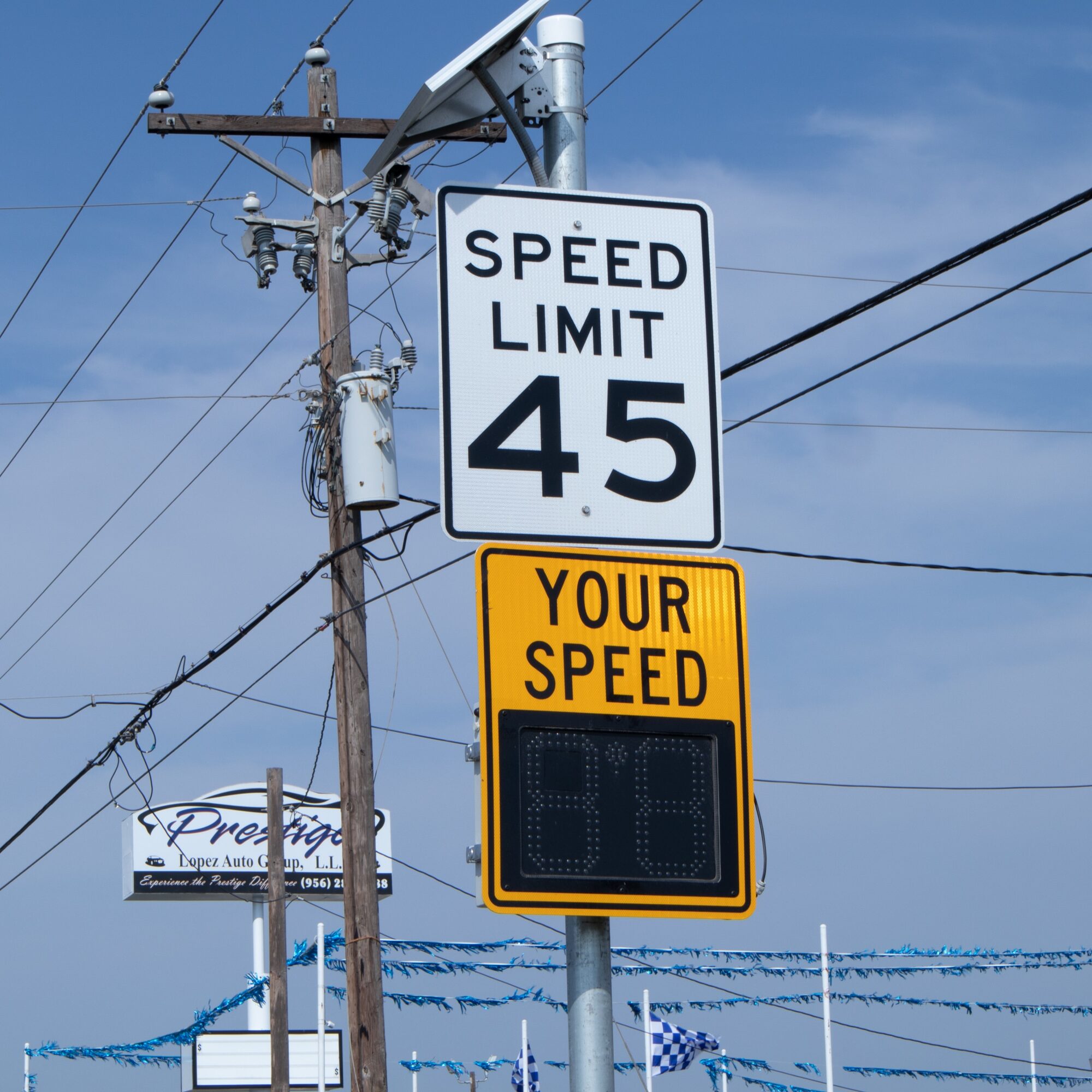

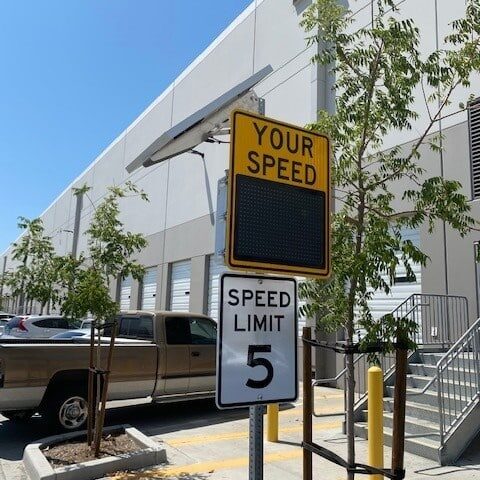

The Evolution 12 is a compact radar speed sign ideal for private communities, work sites, or low volume local roads. Speed signs like the Evolution 12 help with traffic calming by reminding drivers of their speeds and encouraging them to slow down. Radar signs are posted along with speed limit signs to remind motorists to observe speed laws.

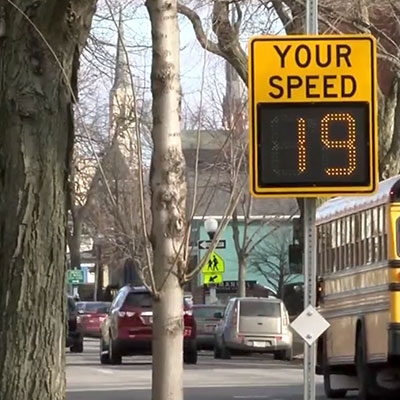

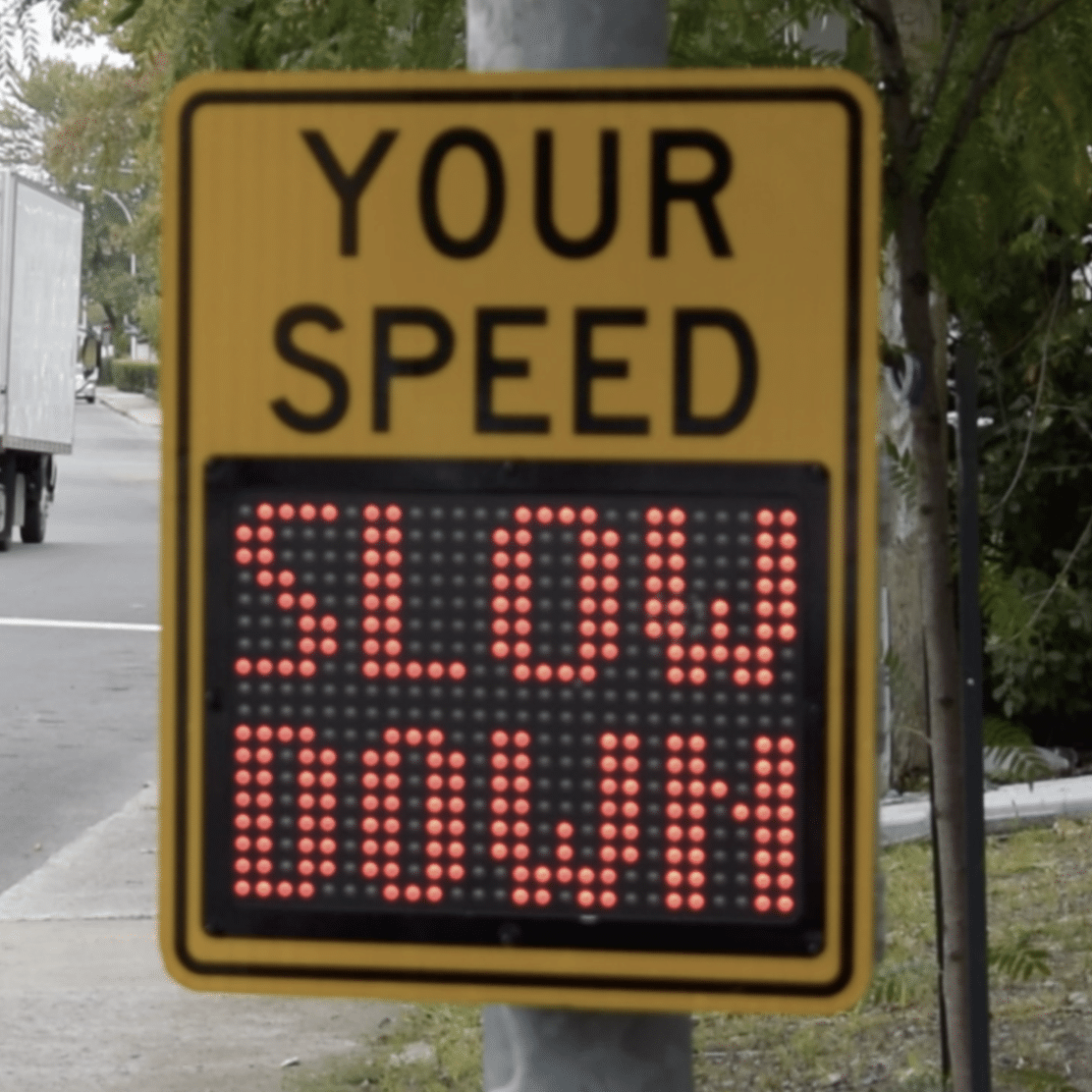

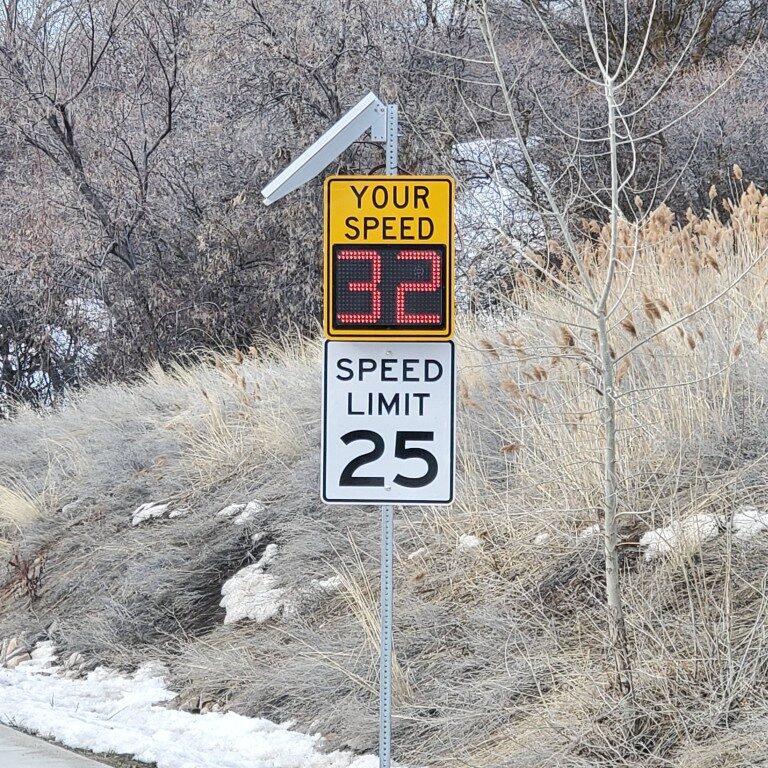

As with all Safepace speed display signs, the Evolution 12 displays driver speed in bright LED digits. Its bright 3 digit speed display also offers speed activated digit color changes to alert speeders.
The Evolution 12 offers a choice of power sources and accessories. It’s a compact solution that improves speed awareness and enhances public safety.
Features:
• Compact sign with smaller 12” digits
• Affordable pricing
• Static Your Speed message
• Lightweight, compact design
• Energy efficient power options
• Dual-color LED display
• 3 digit display
• Diamond-grade sheeting available
• Strobe activation/deactivation available
Compatible with:
• Traffic data and reports
• SafePace Cloud remote access
• Universal mounting bracket
• Beacon system for school zones

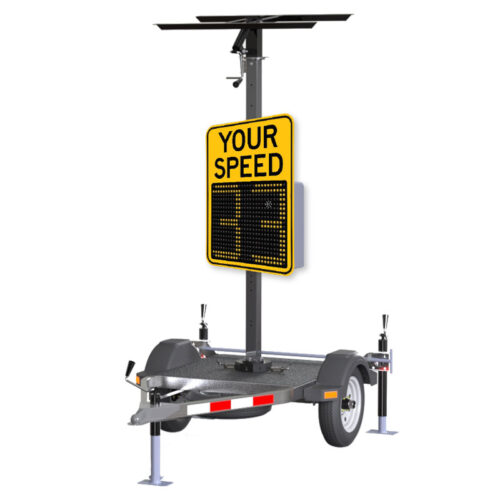

• Cruiser LT mobile trailer
• Moveable sign dolly
• Sign hitch
Specs
Dimensions
Electrical Specifications
AC power input | 100~240 V AC |
DC power input | 12 V DC |

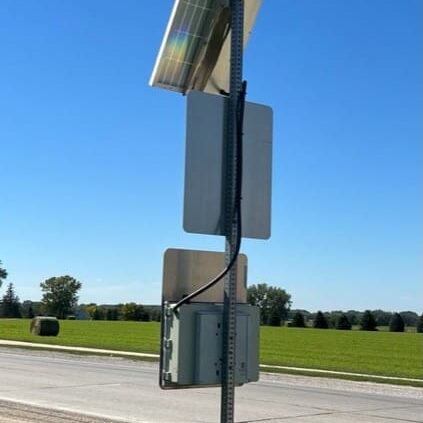

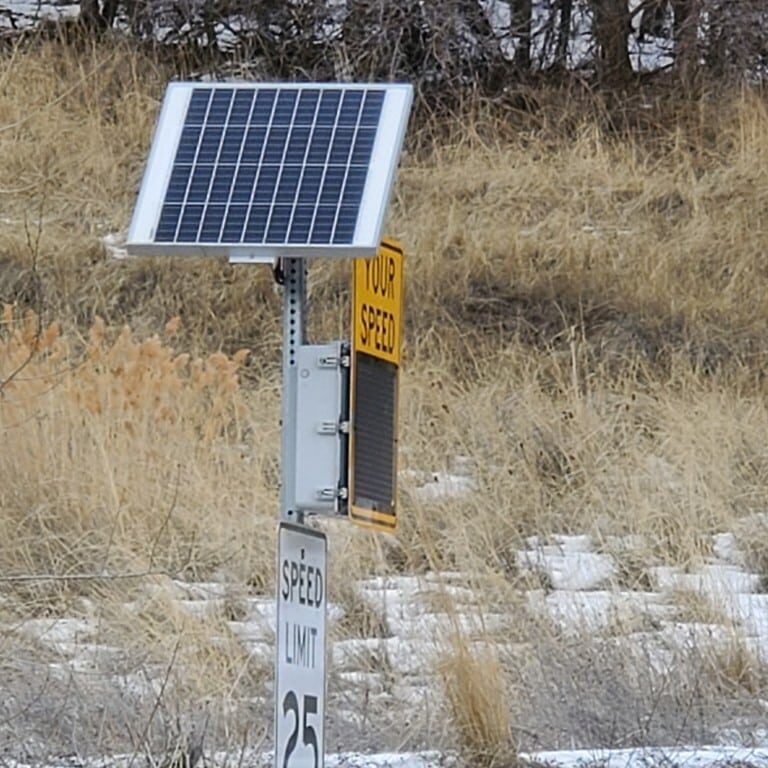

Solar panel options | 50W |
Display
LEDs | 460 |
Digits (Yellow) | 224 Yellow (590 nm), 30°, 9000 – 22400 Ev,[lux]/LED |
Digits (Red) | 224 Red (633 nm), 30°, 7100 – 18000 Ev,[lux]/LED |
Speed Violator Strobe | 12 White (2700 K – 6500 K), 150°, luminous flux 33lm @ 4000 K |
Ambient light sensors | 1 sensor and automatic brightness control |
SafePace Evolution 12 FAQs
While both the 12” and 11” signs offer compact, lightweight speed display, only the 12” sign has digits large enough to meet MUTCD regulations. It also offers multiple digit color options while the 11” signs only offer yellow LEDs.
The smaller size of the Evolution 12 as compared to our full size signs offers a smaller footprint and lower cost. However, the smaller digits can’t be seen from as far away, making it a better choice for low volume roads with lower speed limits.
Our traffic safety support team is trained and available to help you figure out which speed display sign is the best fit to address your streets’ unique challenges.
All Evolution signs are web enabled and come with one year free access to the cloud. You can view detailed speed data from before and after you use your speed sign to track the difference it’s making in driver behavior.
SafePace Evolution signs offer stealth mode, where your signs appear to be off but are actually collecting traffic data. This helps you create a base of data to compare to. We also offer Speed Tracker for even more discreet speed collection data.
