Traffic Logix Rubber Speed table

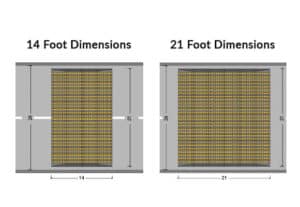

Speed Table dimensions

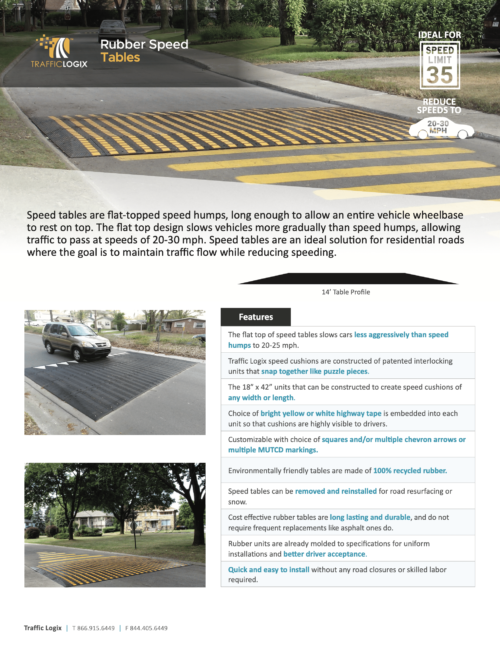

SPEED TABLES

Traffic Logix recycled rubber speed tables are flat-topped speed humps with room for the entire wheelbase of a passenger car to rest on top. The flat top design allows cars to maintain slightly higher speeds than they would on speed humps, slowing cars to around 20-25 mph.

Made of interlocking units that simply snap together, Traffic Logix speed tables are quick and easy to install. Typically 3” high and 14’ or 21’ long, speed tables are an effective solution for safer neighborhood streets.

Standard Markings

Markings are embedded into rubber during manufacturing process. Reflective material in Yellow or White Squares Reflective material in White Arrows.
Speed Hump markings

Features:

• Flat topped speed humps
• Interlocking, puzzle piece design
• Highly visible with bright highway tape
• Environmentally friendly
• Quick and simple to install
• Customizable sizing & taping

Specs

Unit Specs

Width18”
Length42”
Thickness3”

Speed Table Specs

WidthFrom 84” & up, by 18” increments
LengthFrom 72” & up, by 42” increments
Height3” or 4”

Standard Speed Table Specs

Width14’ or 21’
Length84”
Height3” or 4”
Warranty2 Years

Physical Properties

Material100% recycled synthetic and
natural rubber composite
Tensile strengthMinimum 500 psi
Shore hardnessMinimum 70A
Specific gravity1.1
MarkingsRubber modules are available in all black, black with yellow or white reflective square markings, or with white reflective arrow chevrons
