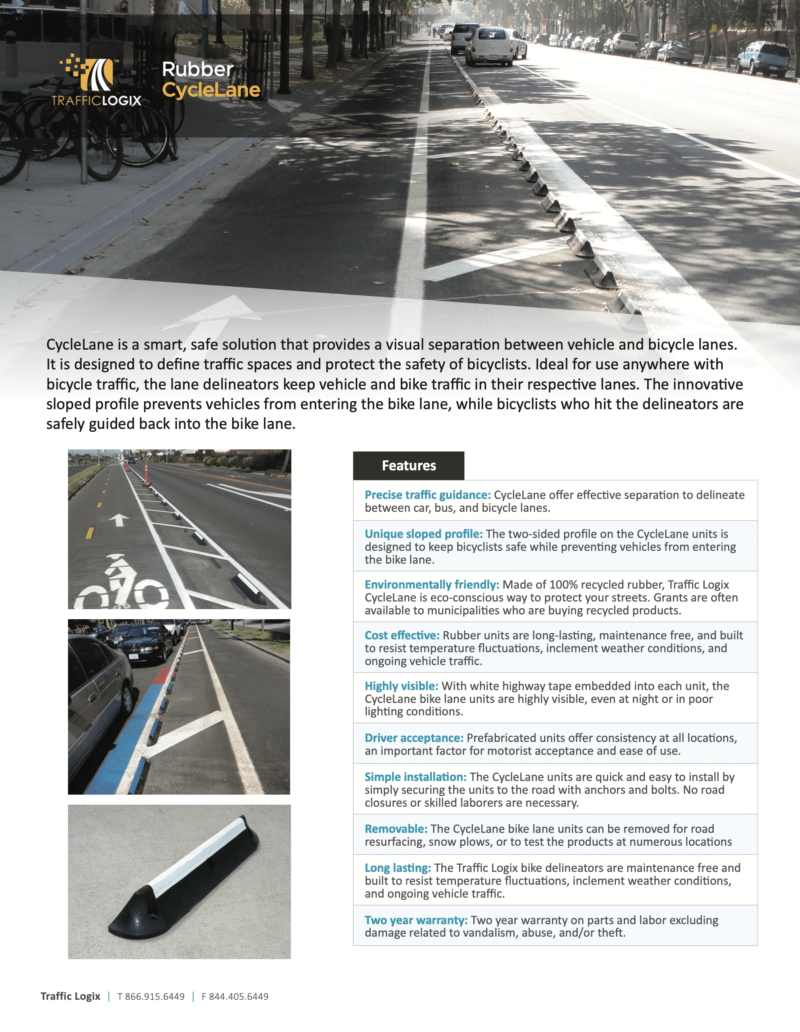

CycleLane is a smart, safe solution that provides a visual separation between vehicle and bicycle lanes. It is designed to define traffic spaces and protect the safety of bicyclists. Ideal for use anywhere with bicycle traffic, the lane delineators keep vehicle and bike traffic in their respective lanes. The innovative sloped profile prevents vehicles from entering the bike lane, ensuring that vehicles cannot enter the bike lane while bicyclists who hit the delineators are safely guided back into the bike lane. To see more photos of Traffic Logix CycleLane, view our photo galleries.

Precise traffic guidance

CycleLane offer effective separation to delineate between car, bus, and bicycle lanes.

Unique sloped profile

The two-sided profile on the CycleLane units is designed to keep bicyclists safe while preventing vehicles from entering the bike lane

Environmentally friendly

Made of 100% recycled rubber, Traffic Logix CycleLane is eco-conscious way to protect your streets. Grants are often available to municipalities who are buying recycled products.

Cost effective

Rubber units are long-lasting, maintenance free, and built to resist temperature fluctuations, inclement weather conditions, and ongoing vehicle traffic .

Highly visible

With white highway tape embedded into each unit, the CycleLane bike lane units are highly visible, even at night or in poor lighting conditions

Driver acceptance

Prefabricated units offer consistency at all locations, an important factor for motorist acceptance and ease of use. Unlike concrete and asphalt, rubber units maintain their shape over time and do not contract with heat or vehicle pressure.

Simple Installation

The CycleLane units are quick and easy to install by simply securing the units to the road with anchors and bolts. No road closures or skilled laborers are necessary.

Removable

The CycleLane bike lane units can be removed for road resurfacing, snow plows, or to test the products at numerous locations.

Long lasting

The Traffic Logix bike delineators are maintenance free and built to resist temperature fluctuations, inclement weather conditions, and ongoing vehicle traffic.

Two year warranty

Two year warranty on parts and labor excluding damage related to vandalism, abuse, and/or theft.

Specifications Printer-Friendly Version

Material: compression molded recycled rubber

Physical properties of the product:

  • Density: 0.6 oz/cu in (ASTM C642)
  • Shore Hardness: 65A +/- 7 (ASTM D2240)
  • Minimum Tensile Strength: 500 psi (ASTM D412)
  • Coefficient of thermal expansion: 8 x 10-5 in/in/oF (ASTM C531)
Nominal dimensions:
  • width: 4.75" (120 mm)
  • length: 29.5" (750 mm)
  • height: 4" (100 mm)

Finishing: black with reflective white tape

Components:

  1. Recycled rubber
  2. Durable and reflective white striping / marking tape

Install Guide

Installation tools
  • Measuring tape
  • Heavy duty hammer drill
  • Drill bits carbide tip, At least two 9/16" dia., 10-12" long
  • Installation tool for plastic shields
  • 11/16" drive socket with a power tool
  • Portable blower for cleaning installation holes
  • Utility knife
  • Crow bars
Installation method
Each curb unit is affixed to the pavement with three zinc-plated steel lag bolts 3/8" x 4",  plastic polypropylene shields and 3/8" zinc-plated steel washers supplied with the units. 9/16" diameter holes are drilled through the holes in the units into a paved road.
The plastic shields are installed in the mounting holes with the provided installation tool.
The lag bolts are inserted into mounting holes and tightened (do not over-tighten the bolts).
